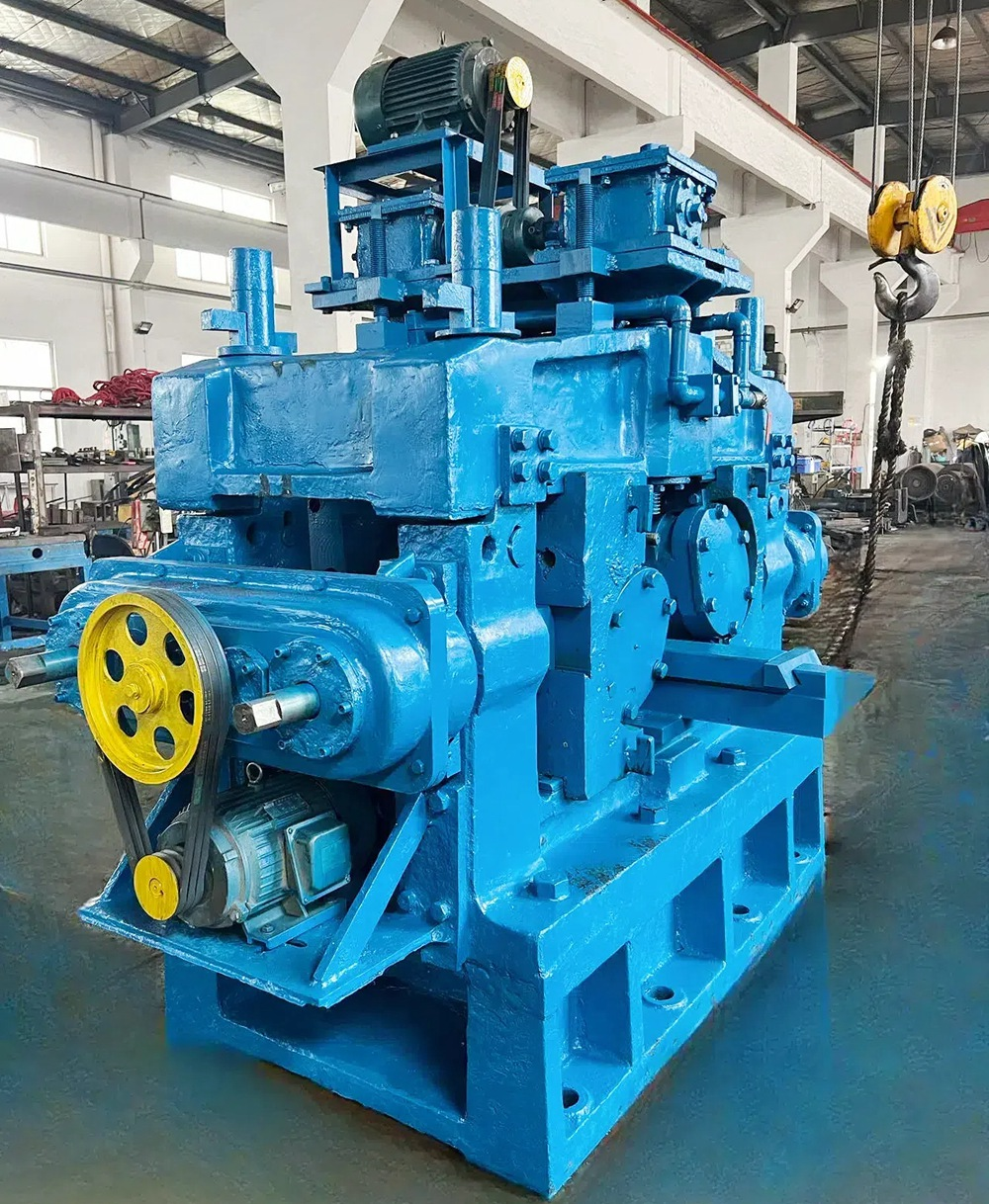

Tube Piercing Machine

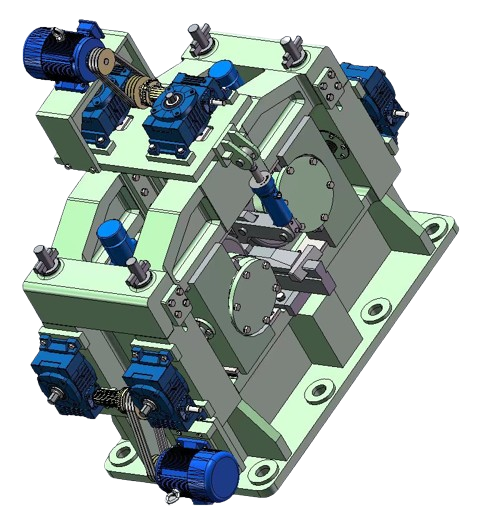

– Two-Roller Horizontal Cone-Type Piercer
The tube piercing machine is an essential piece equipment in the hot rolling process for seamless steel pipes or non-ferrous metal pipes. This machine features two cone-shaped rollers positioned horizontally, each with a separate transmission system. The guide plate is vertically aligned to ensure precise operation. Piercing is a critical deformation process in the production of seamless pipes, where solid billets are heated to the required temperature and pierced to form a hollow shape.
This tube piercing machine is designed to produce pipes with various specifications from a single size of tube blank. This versatility reduces the number of tube blanks needed, lowers storage costs, and accelerates capital turnover.
| No. | Specification | Type | ||
| LXC50 | LXC80 | LXC100 | ||
| 1 | Dia. of Solid bar(mm) | 45~75 | 60~110 | 80~160 |
| 2 | Length of Solid bar(m) | 1~1.8 | 2~3 | 2~3 |
| 3 | Dia. of Hollow(mm) | 46~78 | 62~128 | 83~175 |
| 4 | WT of Hollow(mm) | 2.8~8 | 5~26 | 6~26 |
| 5 | Length of Hollow(m) | 5.5 | 7.5 | 9 |
| 6 | Motor power(kw) | 320 | 800 | 1600 |
| 7 | Roller Dia.(mm) | 350 | 450 | 620 |
| 8 | Other types | LXC30, LXC40, LXC60, LXC90, LXC114 | ||
Advantages of the Tube Piercing Machine:
Expandable Diameter Production: Produce tubes of various specifications from one tube blank specification.
Minimal Wall Thickness Deviation: The eccentricity of the capillary wall thickness is reduced to half of the allowable limit or even lower.
Large Elongation Coefficient: Supports high elongation during the piercing process.
High Production Capacity: Optimized for fast and efficient production.
Processing Low-Plasticity Metals: Capable of handling metals with low plasticity.
Reduced Ovality: The machine reduces the ovality of the tube.
High Feeding Efficiency: Maximizes overall feeding efficiency during production.
