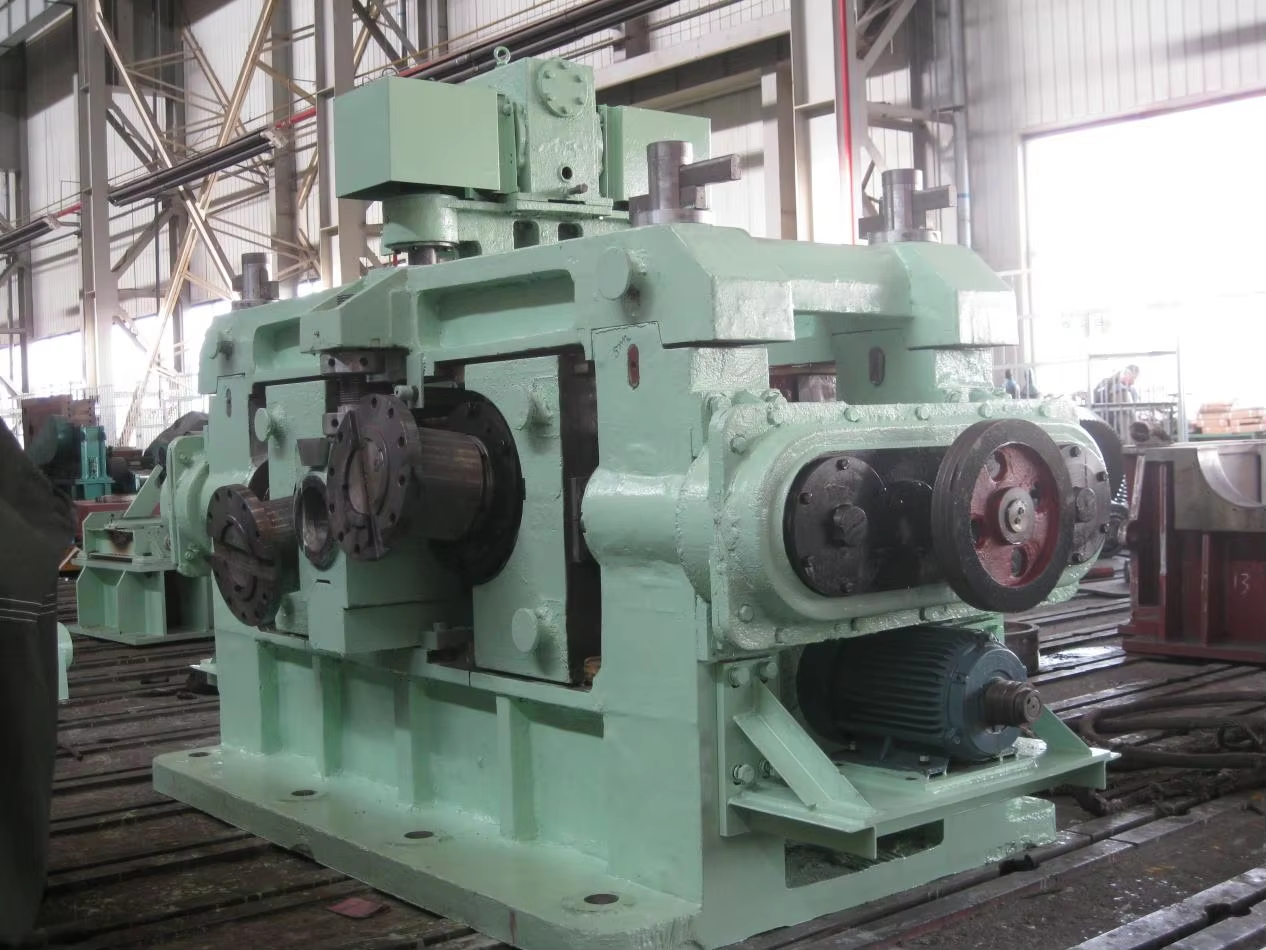

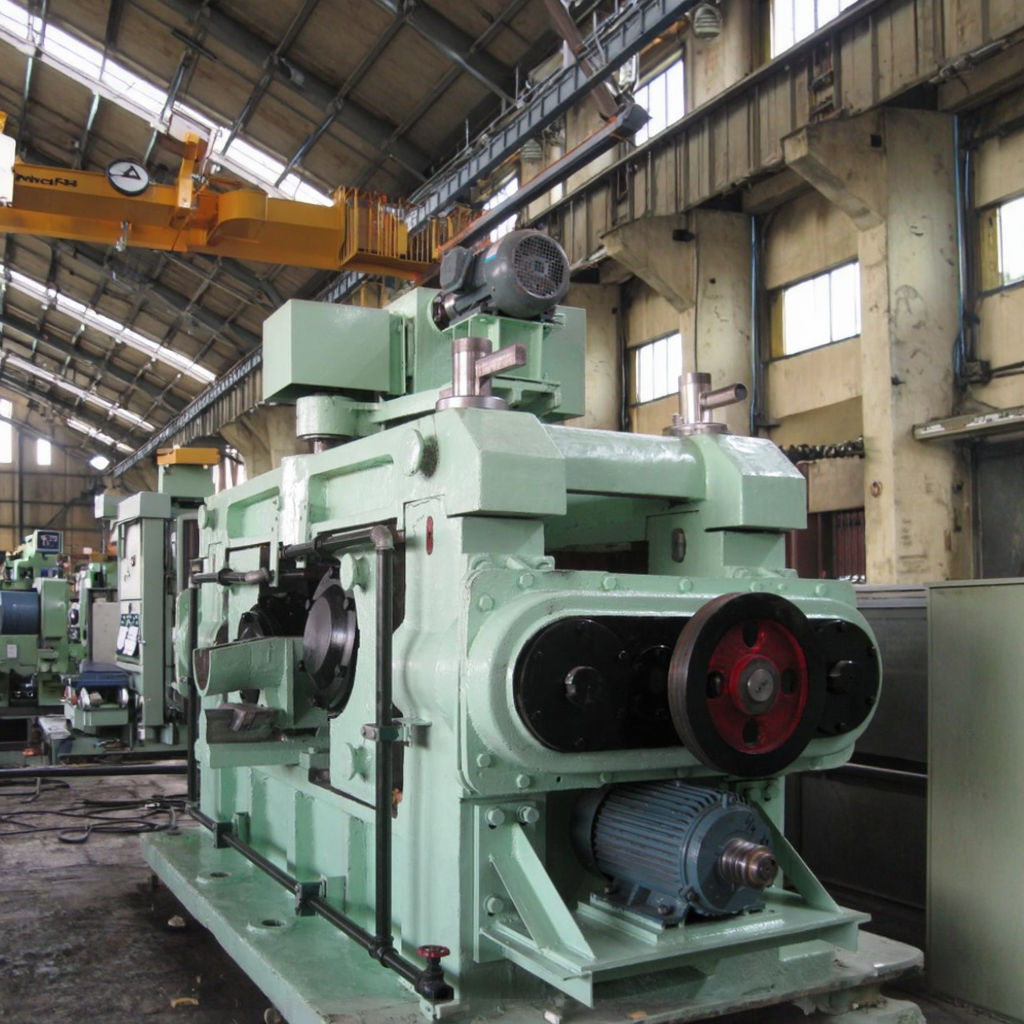

Seamless Tube Piercing Rolling Mill

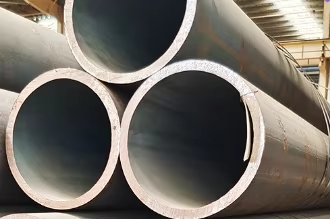

The Seamless Tube Piercing Rolling Mill is a crucial machine for producing seamless pipes. This two-roll skew rolling piercer is responsible for the initial deformation of metal billets, turning them into hollow pipes. These pipes can then be further processed into cold-drawn or cold-rolled high-precision tubes or undergo elongation, sizing, and straightening to become finished seamless pipes. The raw materials used can include steel, titanium, aluminum, copper, and more.
Typically, this machine works in combination with other pipe production equipment such as pipe mills, sizing mills, and straightening machines, all from the same series.
Piercing Process:
-
Raw Material Preparation: Cut billet into required lengths using a band saw or punching machine.
-
Heating: Billets are heated in a sloping heating furnace or walking beam furnace.
-
Piercing: The billet is pierced into a hollow tube using the piercing mill.
-
Cooling: The hollow pipes are cooled using a cooling bed.
Main Parameters:
| Specification | LXC50 | LXC80 | LXC100 |
|---|---|---|---|
| Dia. of Solid Bar (mm) | 45-75 | 60-110 | 80-160 |
| Length of Solid Bar (m) | 1-1.8 | 2-3 | 2-3 |
| Dia. of Hollow (mm) | 46-78 | 62-128 | 83-175 |
| WT of Hollow (mm) | 2.8-8 | 5-26 | 6-26 |
| Length of Hollow (m) | 5.5 | 7.5 | 9 |
| Motor Power (kw) | 320 | 800 | 1600 |
| Roller Dia. (mm) | 350 | 450 | 620 |
For more information, feel free to contact us! Wee the the spare parts for tube piercing machines.
Related Seamless Tube Hot Rolling Process Machines
| Reheating furnace; |
| ·Plug mill; |
| Sizing mill; |
| Cold rolling machine; |
| Cold drawing machine |
| Straightening machine; |
| Roller way; |
| Detecting instruments. |
