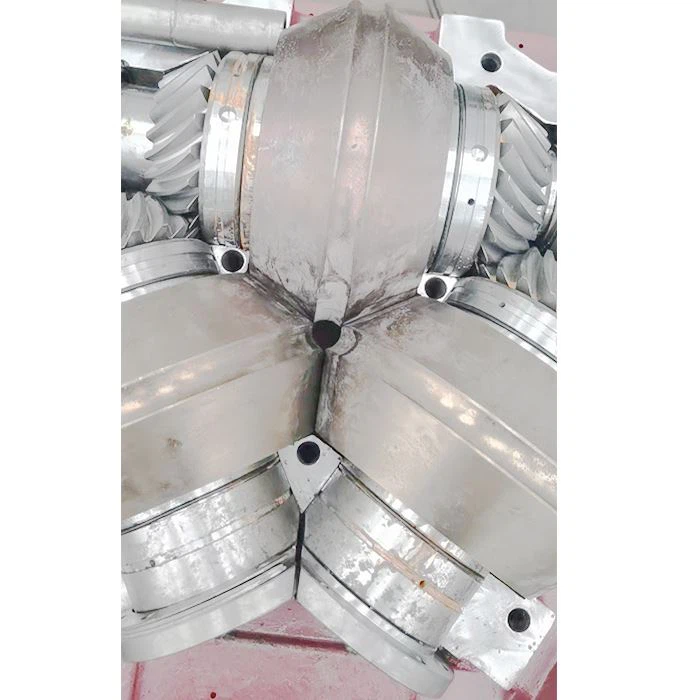

Seamless Pipe Sizing Roller

– Key Tool for Precision Sizing Mills

The Seamless Pipe Sizing Roller is a critical tool used in sizing mills to achieve precise dimensions and optimal roundness for seamless steel tubes. The machining accuracy of these sizing rollers directly impacts the assembly precision of the sizing machine and, ultimately, the quality of the seamless steel tube produced. The sizing process is crucial for refining the outer dimensions of the tube, reducing diameter deviation, minimizing ellipticity, and improving straightness. After the sizing operation, the steel tube features a smoother surface and superior geometric accuracy, which significantly enhances the overall quality and performance of the pipe.

Purpose and Function of Seamless Pipe Sizing Rollers:

The main goal of the Seamless Pipe Sizing Roller is to transform the steel tube into its required final size with a high degree of precision. This operation is crucial for achieving the correct diameter, roundness, and surface smoothness of the tube, which are essential qualities for many industrial applications.

Sizing is the final step in the process of shaping seamless steel pipes, which have been heated and elongated in the piercing mill and elongation mills. During sizing, the pipe is passed through a series of rollers that compress and refine the tube’s outer surface, ensuring the finished product meets tight dimensional tolerances.

Some of the key objectives of sizing include:

1. Accurate Diameter Control: Ensuring the seamless pipe maintains the exact diameter required by industry standards or customer specifications.

2. Enhanced Roundness: Reducing the deviation from a perfect circular shape to improve the structural integrity of the pipe.

3. Improved Surface Finish: Refining the external surface of the tube to remove any irregularities or roughness.

4. Minimizing Ellipticity: Reducing the variation in wall thickness caused by ovality.

5. Improved Straightness: Ensuring that the pipe remains straight without warping or bending, which is essential for transporting fluids and gases.

Key Features of Seamless Pipe Sizing Rollers:

1. Material: The Seamless Pipe Sizing Roller is made from high-quality chilled nodular cast iron, which is known for its excellent wear resistance, strength, and durability. This material helps the roller withstand the high levels of stress, pressure, and temperature encountered during the sizing process.

2. Machining Precision: The machining precision of the sizing rollers plays a vital role in the overall performance of the sizing mill. Even the smallest deviation in the roller’s dimensions can negatively affect the pipe’s final shape, size, and surface finish. As such, all sizing rollers undergo rigorous machining processes to ensure they meet strict accuracy requirements.

3. Enhanced Durability: Due to the high wear and tear associated with the sizing process, the Seamless Pipe Sizing Roller is designed to last longer, even under extreme operating conditions. The material used ensures that the rollers can perform consistently over an extended period, minimizing downtime and maintenance costs.

4. Customization: Our Seamless Pipe Sizing Rollers can be customized to meet the specific requirements of various pipe production lines. The dimensions, weight, and surface finish of the rollers can be tailored to match the exact specifications needed for your production process.

Production Process:

The production of Seamless Pipe Sizing Rollers follows a meticulous process to ensure the highest quality and performance. The typical steps involved in the manufacturing process include:

1. Casting: The rollers are initially produced through casting, using chilled nodular cast iron. This ensures that the material has the necessary properties to withstand the stresses of the sizing process.

2. Rough Machining: After casting, the rollers undergo rough machining to shape them and remove excess material, preparing them for further refinement.

3. Heat Treatment: Heat treatment is performed to enhance the hardness and strength of the roller, ensuring it can endure the wear and pressure it will face in operation.

4. Finishing: Finally, the rollers undergo a finishing process that involves precision machining to achieve the desired dimensions, smooth surface, and tight tolerances.

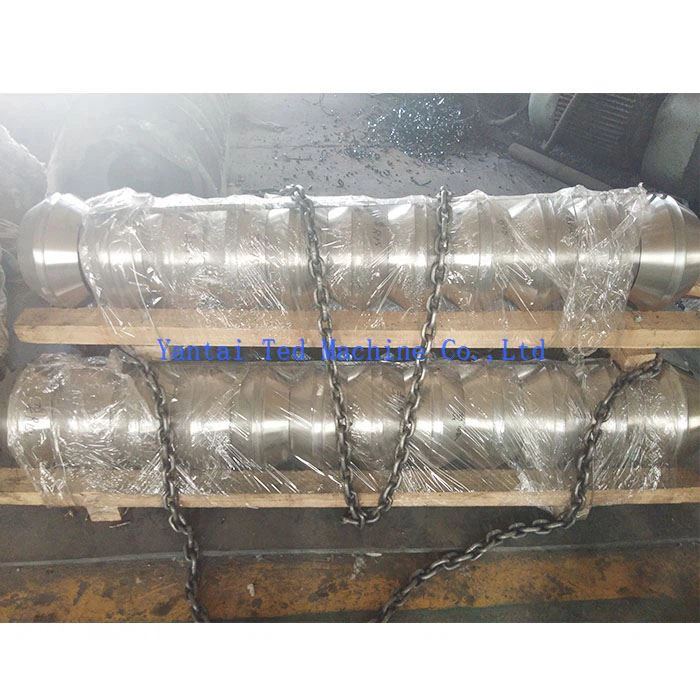

5. Packaging: Once the rollers are fully manufactured and inspected, they are carefully packaged to prevent any damage during transportation.

Quality Assurance:

To guarantee the highest quality, each Seamless Pipe Sizing Roller undergoes rigorous quality control checks throughout the manufacturing process. Key aspects of the quality assurance process include:

• MT (Magnetic Particle Testing): This is used to detect any internal defects or cracks in the rollers that may compromise their performance.

• Size Report: A detailed size report is provided to ensure that the rollers meet the exact specifications required for your production line.

• Surface Finish Inspection: The surface finish of the roller is checked to ensure it is free from defects that could impact the surface quality of the pipes.

Advantages of Seamless Pipe Sizing Rollers:

1. Precise Sizing: The rollers ensure that the seamless pipe is sized accurately, with minimal deviation, improving the pipe’s overall quality and reducing rework.

2. Improved Surface Quality: The high precision of the rollers helps to enhance the surface finish of the pipe, providing a smoother, cleaner, and more uniform exterior.

3. Durability and Longevity: Made from chilled nodular cast iron, the rollers are designed to handle extreme wear and tear, extending their service life and reducing the need for frequent replacements.

4. Customization: Sizing rollers can be customized to meet the specific requirements of different pipe dimensions, ensuring the best performance in your production line.

5. Cost-Effective: By improving pipe quality and reducing the need for additional machining or rework, the Seamless Pipe Sizing Roller ultimately lowers production costs.

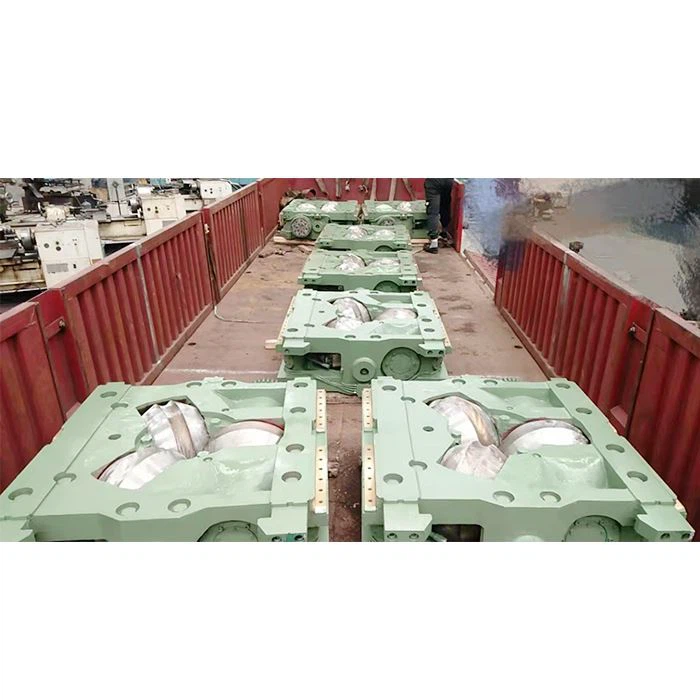

Seamless Pipe Sizing machine Roller

Applications of Seamless Pipe Sizing Rollers:

The Seamless Pipe Sizing Roller is used primarily in industries that require high-precision pipes for various applications, such as:

• Oil and Gas: For producing seamless pipes used in drilling, exploration, and transportation.

• Construction: In the manufacture of pipes for infrastructure and building projects.

• Automotive: For high-precision pipes used in automotive components.

• Aerospace: For producing lightweight and durable pipes for aircraft and spacecraft.

• Water and Wastewater: Used in the production of pipes for water supply and sewage systems.

The Seamless Pipe Sizing Roller is an indispensable component of the sizing mill, ensuring the precise shaping and finishing of seamless steel pipes. With its robust construction, high machining precision, and superior durability, this roller is designed to improve the quality of the pipes produced, reduce defects, and enhance operational efficiency. Whether you are manufacturing pipes for oil and gas, construction, automotive, or other industries, our Seamless Pipe Sizing Rollers offer the reliability and performance needed for optimal results.
