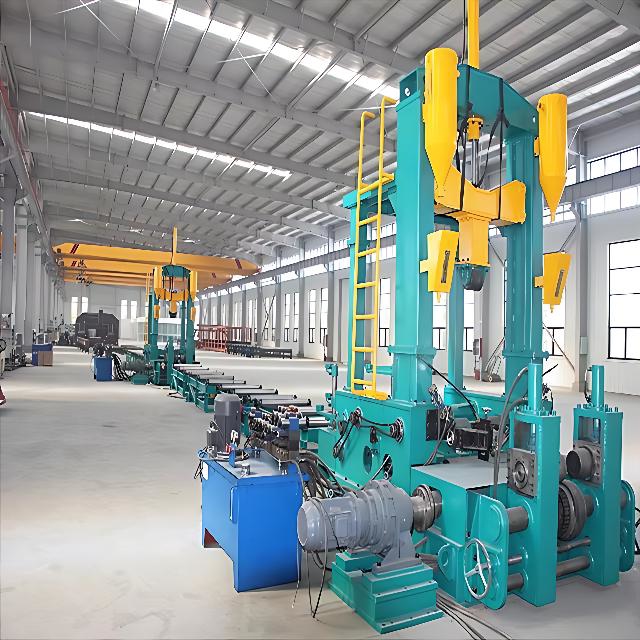

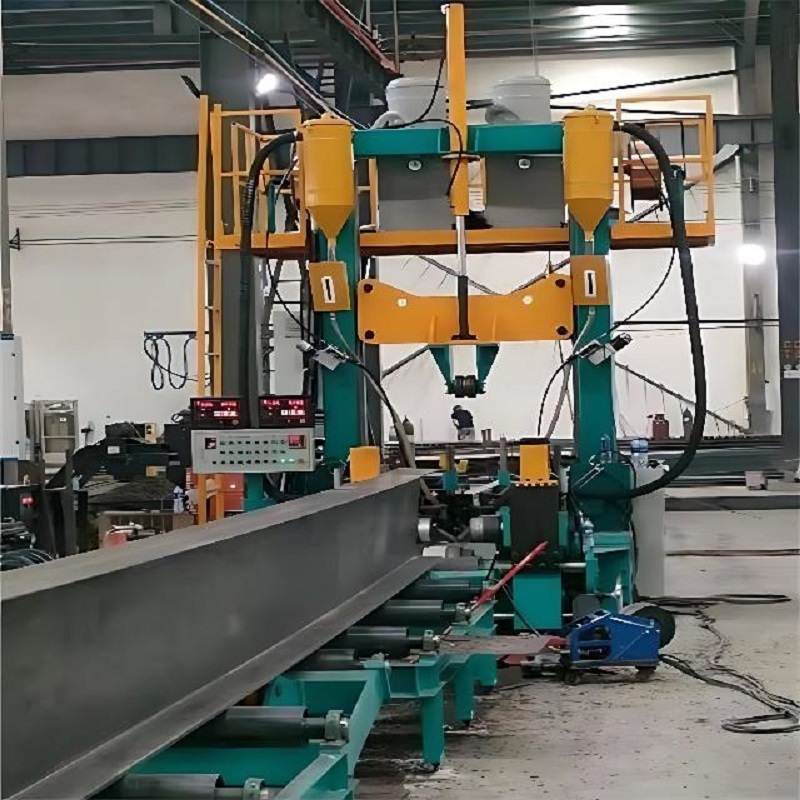

Beam Steel Cutting Machine
High-Speed Structural Steel Processing | KWM Machinery
Precision Beam Steel Cutting Solutions
KWM Machinery’s Beam Steel Cutting Machine revolutionizes structural steel fabrication with ±0.2mm/m cutting accuracy, designed for H-beams, I-beams, and channels up to 1,200mm flange width. Our systems achieve 95% material utilization through AI-optimized nesting, complying with EN 1090-2 and AISC 303 standards for bridge, high-rise, and industrial plant construction.
Beam Steel Cutting Machine Key Features
-
Advanced Cutting Technology
-
Plasma/Laser/Oxyfuel multi-process heads (up to 200mm thickness)
-
7-axis CNC control (Siemens 840D sl) with collision avoidance
-
Cutting speed: 8,000mm/min (plasma), 15m/min (oxyfuel)
-
-
Smart Material Handling
-
Automatic beam rotation (±0.01° repeatability)
-
20T capacity lifting system with RFID tagging
-
-
Energy Efficiency
-
25% lower gas consumption with dynamic flow control
-
Regenerative power recovery system
-
Beam Steel Cutting Machine Technical Advantages
-
Edge Quality:
∙ Kerf width ≤2mm (plasma) | Surface roughness Ra ≤12.5μm
∙ Automatic bevel cutting (22.5°-45° for weld prep) -
Material Flexibility:
∙ ASTM A992 beams | S355J2 structural steel | Weathering steel (CORTEN) -
Quality Assurance:
∙ Laser-guided alignment (0.05mm/m straightness)
∙ Real-time thermal deformation compensation
Beam Steel Cutting Machine Applications
| Industry | Typical Cuts | Standards |
|---|---|---|
| Bridge Engineering | Orthotropic deck U-ribs | AWS D1.5 |
| High-Rise Buildings | Moment connection plates | ANSI/AISC 358 |
| Shipbuilding | Hull structural profiles | DNV GL RP-C203 |
| Energy Infrastructure | Wind turbine tower sections | EN 1993-1-9 |
Certifications & Safety
-
CE & ISO 3834 Certified cutting systems
-
Safety Features:
∙ Class 4 laser safety enclosure (EN 60825)
∙ Automatic fume extraction (OSHA PEL compliance)
FAQ
Q: What’s the maximum beam length supported?
A: Standard models handle 12m beams, extendable to 24m with rail systems.
Q: Can you process asymmetrical sections?
A: Yes – our adaptive clamping system secures angles/channels up to 400mm.
Q: How to maintain cutting accuracy?
A: Auto-calibration via laser interferometry before each shift.
We also have Steel tube Rolling mill for whole production line –hot rolling mill and cold rolling mill.please contact for more details.
